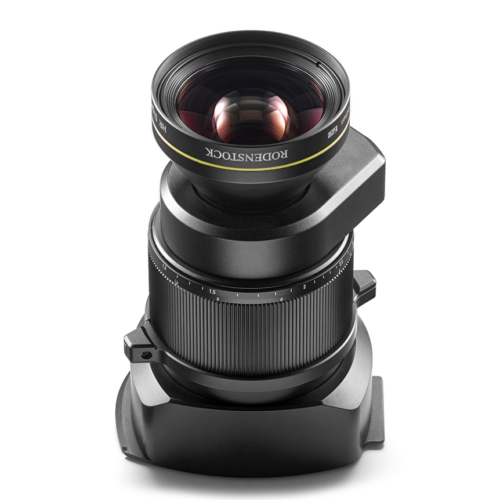

The XT – Rodenstock HR Digaron-SW 90mm f/5.6 boasts the largest image circle of any XT Rodenstock Lens. The large image circle and distortion free focal length is perfect for large panoramic or 4-panel architectural stitching.
ANGLE OF VIEW
67°
APERTURE RANGE
f/5.6 – f/22
DIAPHRAGM
Automatic
FOCUSING SYSTEM
Ultra fine manual focus
FILTER
72mm
DIMENSIONS
160 x 107 x 90 mm / 6.3 x 4.21 x 3.54 in
WEIGHT
1200 g / 2.65 lbs
Exclusive lenses from the renowned Rodenstock HR lens range elevate the XT Camera experience, and deliver reliably outstanding results.
Known for their great resolving power and contrast even at large apertures, the optical design of Rodenstock HR lenses reduces diffraction and color noise, even at the pixel density of the IQ4 150MP, providing further flexibility to the full frame medium format sensor.
At the heart of every XT – Rodenstock lens is the X-Shutter – an intelligently integrated and electronically controlled shutter, born out of Phase One’s industrial applications and experience. The X-Shutter is purpose-built for the XT Camera System to allow for finer control in a smaller form factor.
The XT – Rodenstock HR Digaron-W 32mm f/4 is a high-quality wide-angle lens with a large image circle and almost no distortion, suitable for significant X and Y shift.
ANGLE OF VIEW
107°
APERTURE RANGE
f/4 – f/22
DIAPHRAGM
Automatic
FOCUSING SYSTEM
Ultra fine manual focus
FILTER
86mm
DIMENSIONS
118 x 107 x 98 mm / 4.65 x 4.21 x 3.85 in
WEIGHT
1100 g / 2.42 lbs
The XT – Rodenstock HR Digaron-W 50mm f/4 is an ideal balance of a “normal” focal length perspective and wide-angle aesthetic, a close equivalent to human vision. With a large image circle and apochromatic design, the lens is ideal for all scenarios and easily becomes a “do it all” lens solution for the XT camera system.
ANGLE OF VIEW
84°
APERTURE RANGE
f/4 – f/22
DIAPHRAGM
Automatic
FOCUSING SYSTEM
Ultra fine manual focus
FILTER
67mm
DIMENSIONS
116 x 107 x 90 mm / 4.57 x 4.21 x 3.54 in
WEIGHT
950 g / 2.09 lbs
The XT-Rodenstock HR Digaron-W 4.0/40mm Tilt is dedicated to impeccable landscape photography, offering outstanding sharpness and unbeatable image quality.
ANGLE OF VIEW
94°
APERTURE RANGE
f/4 – f/22
DIAPHRAGM
Automatic
FILTER
67mm
DIMENSIONS
105 x 107 x 95 mm / 4.14 x 4.21 x 3.74 in
WEIGHT
995g / 2.2 lbs
The XT – Rodenstock HR Digaron-S 23mm f/5.6 is simply the best super wide medium format lens on the market, and is fitted with the exclusive X-Shutter.
ANGLE OF VIEW
112°
APERTURE RANGE
f/5.6 – f/22
DIAPHRAGM
Automatic
FOCUSING SYSTEM
Ultra fine manual focus
FILTER
72mm
DIMENSIONS
95 x 107 x 95 mm / 3.74 x 4.21 x 3.74 in
WEIGHT
850 g / 1.87 lbs
